6.5M (21'4") Alloy Cuddy Cabin

Compact, Robust, Efficient

The 6.5m Alloy Cuddy, the most feature-packed, affordable amphibious solution on the market.

Book a demo

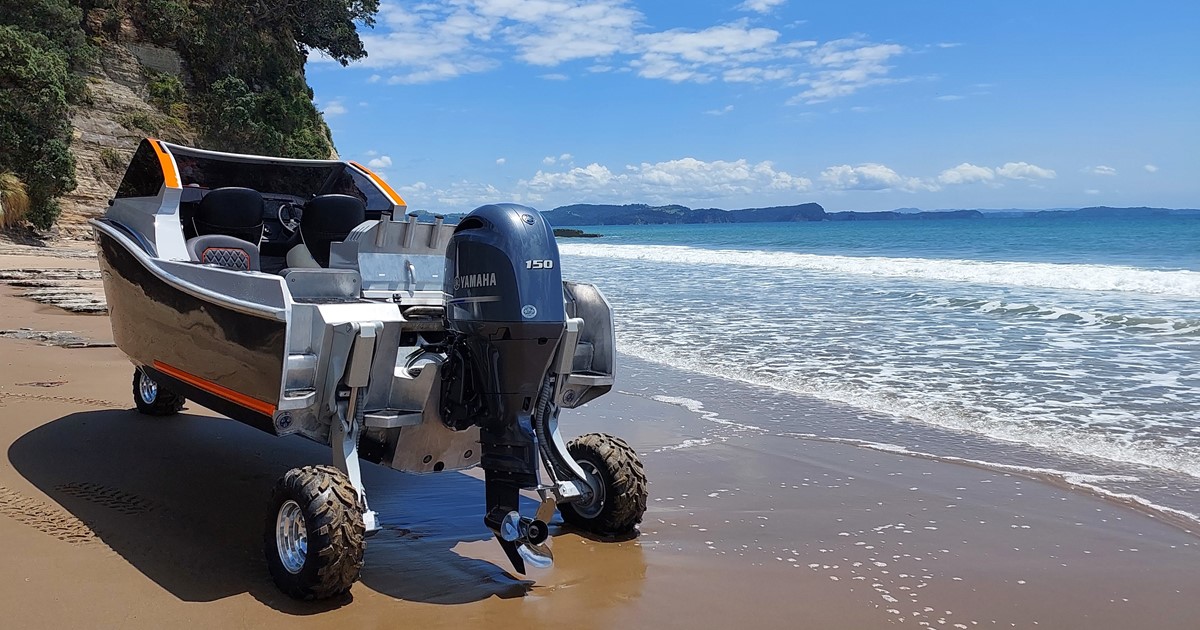

Yamaha 150HP outboard

This amphibious craft delivers exceptional performance on both land and water.

Durable All-Aluminium Hull

This model ensures effortless launch and retrieval.

Designed to fit most garages

Compact to fit 6 passengers comfortably.

Expanded Storage Solutions

Two spacious underfloor kill bins, and a underfloor dry locker, providing ample room for all your essentials.

Smart Transom Design

The twin transom port and starboard fold-out ladders are cleverly concealed within the transom, delivering a sleek appearance and added functionality.

The 6.5m Alloy Cuddy, the most feature-packed, affordable amphibious solution on the market.

6.5m (21ft 4") Alloy Cuddy specifications.

On-land power
Inboard Petrol Engine, Honda - 24HP (16kW) 4-stroke, air cooled.

Top speed (Land)
10 kmph

Run Time (Land)
30 min continuous run time per hour with warning alarms

Drive (Land)
Two Wheel Drive All wheel drive optional with momentary diff lock optional

Brakes
Primary/Dynamic – Hydrostatic Emergency/Automatic Park – Hydraulically released mechanical brake

Tyres
25”x 9” all terrain 4-ply tyres on 9” alloy rims

Maximum incline (Land)
14 Degrees (25% gradient) up. 11 Degrees (20% grade) down. Avoid driving across a transverse incline

Recommended & Max Outboard
1x 200HP

Top speed Max (Water)
36 Knots with 150HP Yamaha

Fuel Capacity – Petrol
100 Litre Tank in Underfloor Locker

Displacement – no fuel
1,420kg

Steering
Seastar power assisted hydraulic steering

Length Overall (wheels up)
6.79m

Hull Length Overall (not incl. wheels)
5.2m

Height
2.44m [Wheels Down]
2.04m [Wheels Up]

Beam overall
2.31m

Hull Deadrise at transom
19 degrees

Seating
Driver and Passenger Bolster Optional Folding Bolster Seat Bench seat on back of engine box.

Storage
Bow / cuddy cabin storage full length gunnel storage underfloor wet storage

Deck
Anti-slip deck tread optional U-Dek foam decking

Batteries
High Crank Start Battery (750CCA)
Optional Second battery (90AH House)

Drainage and bilge
Automatic & switchable bilge pump

Lighting
LED navigation lights

1100 GPH Automatic Bilge Pump
Inboard Engine 24hp
Batteries x 2
Rod & Drink Holders
Navigation Lights
Fixed Windscreen
Deck Tread
Fuel Tank 100L
Sealegs System 61
Pedestal Seats

Outboard options

  • Yamaha 150

Personalisation

  • Top Side and Cabin Wrap

Electrical

  • Battery Charger 10 amp
  • Chartplotter Upgrades - Active Imaging Transducer
  • Chartplotter Upgrades - Simrad 3D Structurescan transducer
  • Fusion Stereo Head Unit, 2 x 6" Speakers
  • Simrad VHF
  • Dual Battery System
  • AWD - All Wheel Drive
  • PS - Power Steering

Accessories

  • All-Wheel Differential Lock & High Speed Drive
  • Anchor with chain and 50m rope
  • Bait Board
  • Bait Station for 6.5m Alloy
  • Live bait tank
  • Lifejacket, Sealegs Black
  • Maxtrax
  • Utralon U-Dek upgrade

Covers

  • 6.5m Craft Storage Cover

Trailers

  • Trailer - 6.5m

Designed with increased storage, four uninterrupted cockpit sleeves, two underfloor kill bins and a forward underfloor dry locker.

Folding Targa top
Integrated bait station
Queen seat base unit
Hassle free, low maintenance
Designed to fit in most garages

A great midsized boat with inbuilt boarding steps at the rear, a real bonus for divers and water enthusiasts.

Pacific Powerboat

Read the review

Practical, efficient, and the most affordable Sealegs model

See for yourself how Sealegs can elevate your adventures. Contact us today to schedule a demo and experience the future of amphibious boating.
